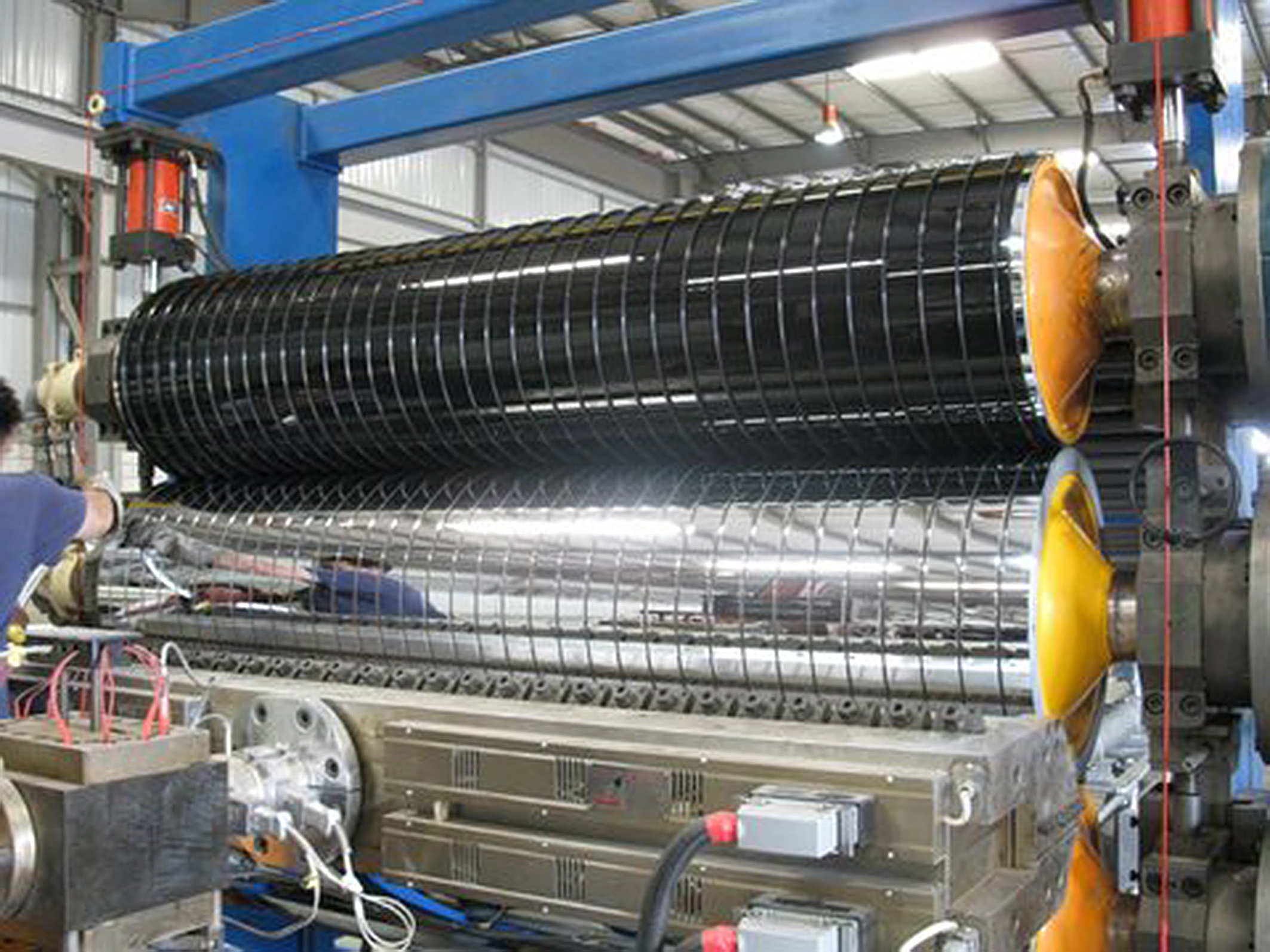

PE “T” grid sheet Production Line

PE strip reinforcement sheet equipment

PE strip rib sheet equipment

This production line is mainly used to produce the “T” grid sheet with the thickness 2-10mm, width 750-2200mm.

 1.About the device

Supporting hostSJ120-170 single screw extruder
Screw aspect ratio (L/D)33:1
Screw speed (r/min)73-90
Main motor power (kw)132-220
Production capacity (kg/h)400-800
T-shaft width × diameter mm2000×Φ500
Mirror surface calendering axis speed r/min0.15-3
Traction speedr/min0.15-3
Traction power kw4
Cutting power kw4
Overall dimensions of the unit (length × width × height) m45-55×3.5×4.25

2. Features of PE strip rib sheet production line

Our company absorbs and digests the latest foreign advanced technology and technology to develop the strip rib sheet production line, which is mainly used for the production of PE strip rib sheets.
The various accessories of this production line equipment can adopt world famous brand products, combined with our company’s many years of board (sheet) equipment manufacturing technology and experience, to make it more reliable and perfect. The surface of its products is smooth, the size error is small, and it has many advantages such as corrosion resistance and strong insulation.
